UArticyBaseObject Class Reference

#include <ArticyBaseObject.h>

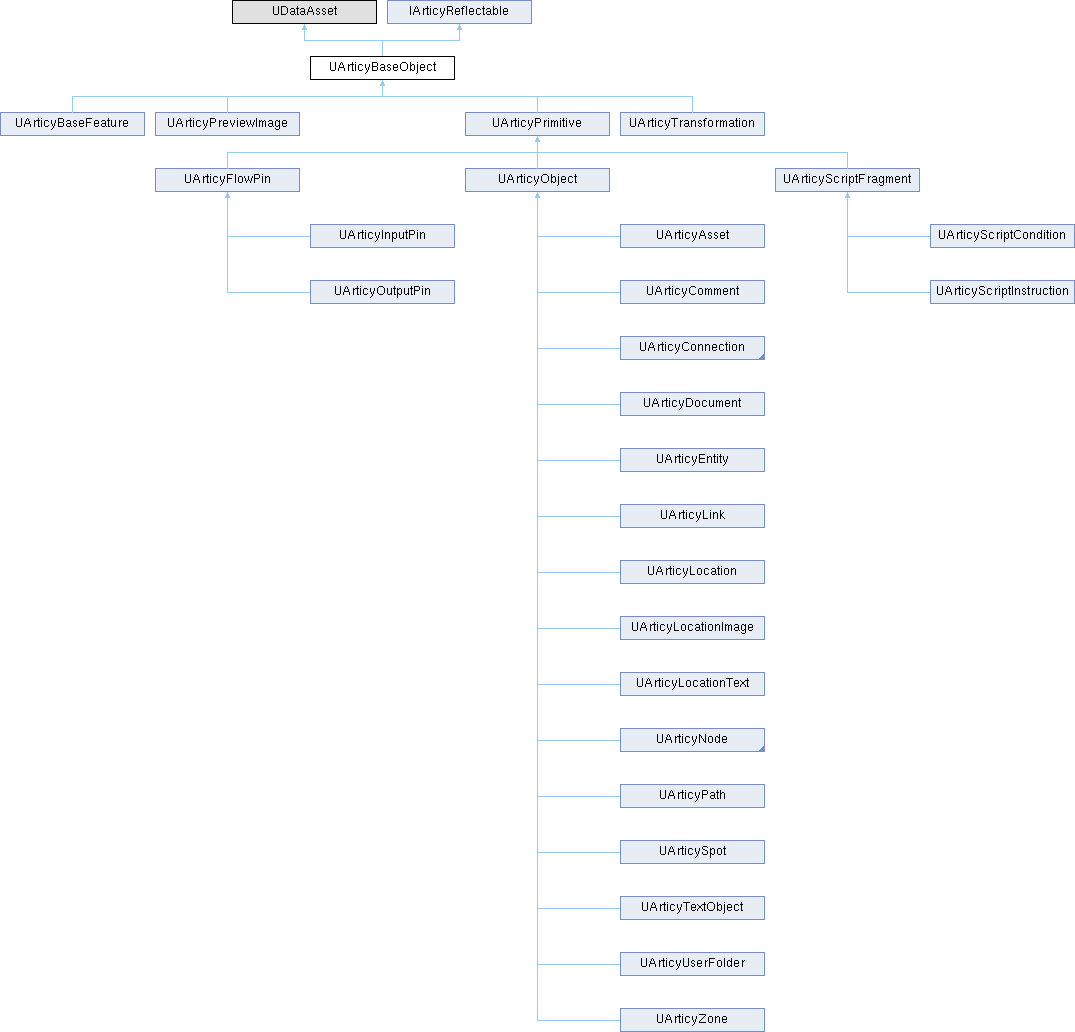

Inheritance diagram for UArticyBaseObject:

Public Member Functions
bool	WasLoaded () const
void	Initialize ()
UArticyPrimitive *	GetSubobject (FArticyId Id) const
FArticyType	GetArticyType () const
Public Member Functions inherited from IArticyReflectable
template<typename TValue>
TValue	SetProp (FName Property, TValue Value, int32 ArrayIndex=0)
template<typename TValue>
TValue &	GetProp (FName Property, int32 ArrayIndex=0)
template<typename TValue>
const TValue &	GetProp (FName Property, int32 ArrayIndex=0) const
template<typename TValue>
TValue *	GetPropPtr (FName Property, int32 ArrayIndex=0) const
FProperty *	GetProperty (FName Property) const
virtual UClass *	GetObjectClass () const

Public Attributes
FArticyType	ArticyType
Public Attributes inherited from IArticyReflectable
FReportChangedDelegate	ReportChanged

Protected Member Functions
virtual void	InitFromJson (TSharedPtr< FJsonValue > Json)
void	AddSubobject (UArticyPrimitive *Obj)
FText	GetPropertyText (const FText Property)

Protected Attributes
TMap< FArticyId, UArticyPrimitive * >	Subobjects

Friends
template<typename Type, typename PropType>
struct	ArticyObjectTypeInfo

Additional Inherited Members
Static Public Member Functions inherited from IArticyReflectable
static bool	HasProperty (const UClass *Class, const FName &Property)

Detailed Description

Base class for all Articy objects.

Member Function Documentation

AddSubobject()

void UArticyBaseObject::AddSubobject ( UArticyPrimitive * Obj )

protected

Adds a subobject to this Articy object.

Parameters

Obj	The subobject to add.

GetArticyType()

FArticyType UArticyBaseObject::GetArticyType

(

)

const

Gets the Articy type of this object.

Returns

The FArticyType associated with this object.

GetPropertyText()

FText UArticyBaseObject::GetPropertyText ( const FText Property )

protected

Retrieves a localized text property for this Articy object.

Parameters

Property

The text property to localize.

Returns

A localized FText object.

GetSubobject()

UArticyPrimitive * UArticyBaseObject::GetSubobject

(

FArticyId

Id

)

const

Retrieves a subobject of this Articy object using its unique identifier.

Parameters

Id	The unique identifier of the subobject to retrieve.

Returns

A pointer to the UArticyPrimitive subobject if found, otherwise nullptr.

InitFromJson()

virtual void UArticyBaseObject::InitFromJson ( TSharedPtr< FJsonValue > Json )

inlineprotectedvirtual

Initializes the object from a JSON value.

Parameters

Json	The JSON value to initialize from.

Reimplemented in UArticyConnection, UArticyFlowPin, UArticyObject, UArticyPrimitive, and UArticyScriptFragment.

Initialize()

void UArticyBaseObject::Initialize ( )

inline

For ArticyImporter internal use only: initializes the bWasDeserialized variable.

WasLoaded()

bool UArticyBaseObject::WasLoaded ( ) const

inline

Returns true if deserialization was already performed for this object.

Member Data Documentation

ArticyType

FArticyType UArticyBaseObject::ArticyType

The Articy type of this object.

Subobjects

TMap<FArticyId, UArticyPrimitive*> UArticyBaseObject::Subobjects

protected

Objects that are dynamically created for this object during import (like Pins, Connections, etc.).

---

The documentation for this class was generated from the following files:

• Source/ArticyRuntime/Public/ArticyBaseObject.h
• Source/ArticyRuntime/Private/ArticyBaseObject.cpp
